125QJB Deep Well Submersible Pump | High Head, Energy Saving

Field Notes: What I’m Seeing with the 125QJB Deep Well Submersible Pump

If you work around irrigation schemes or municipal wells, you’ve probably noticed the same thing I have: the bar for deep-well hardware keeps creeping upward—higher efficiency, tougher metallurgy, smarter controls. The 125QJB Deep Well Submersible Pump sits right in that current. Built in Hebei Province (No. 6 Xingyuan Road, West District, Lincheng Economic Development Zone), it’s pitched as an OEM-friendly workhorse with proper standards behind it. And, to be honest, many customers say the combination of customization and durability is what nudges them over.

125QJB Deep Well Submersible Pump | High Head, Energy Saving

Industry trend check

  • More VFD pairing to dial flow/head and curb energy use.
  • Stainless (304/316) and duplex options for sandy or slightly aggressive water.
  • Telemetry creep: operators want runtime, amps, and fault logs on their phones.
  • Standards-first procurement: GB/T and ISO test sheets are becoming non-negotiable.

What it is (and what it isn’t)

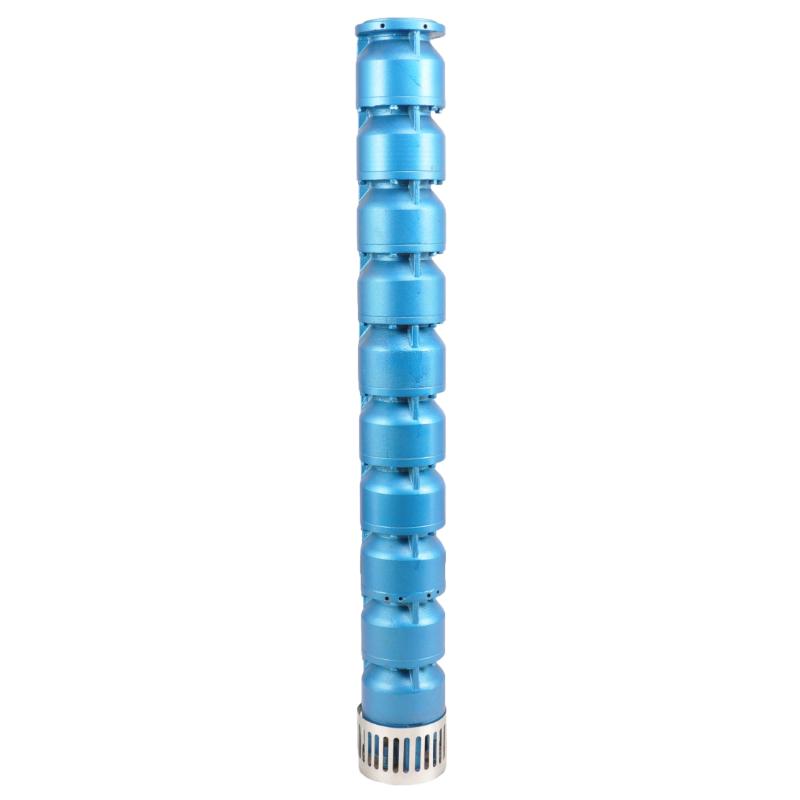

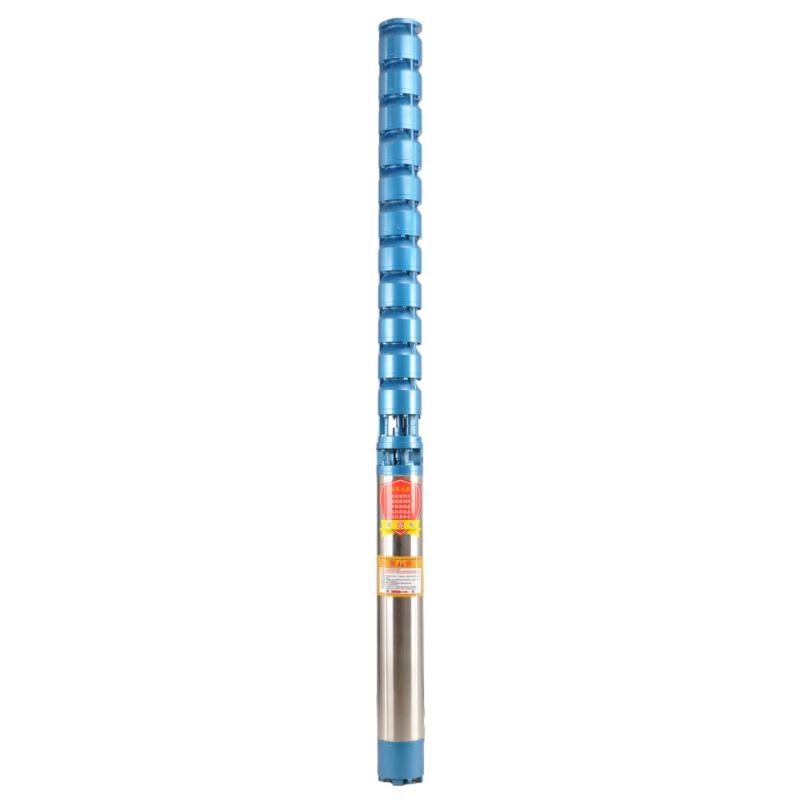

This 125QJB Deep Well Submersible Pump is a vertical multistage unit for boreholes. The maker openly offers OEM processing—non‑standard builds for unusual voltages, narrow wells, higher sand content, that sort of thing. Implementation standards cited: GB/T 2816-2014 (well submersible pump) and GB/T 2818-2014 (well submersible asynchronous motor). WhatsApp: 17855846335.

125QJB Deep Well Submersible Pump | High Head, Energy Saving

Typical specifications (indicative)

Model125QJB (well series)
Flow rate (Q)≈ 20–120 m³/h (real-world use may vary)
Head (H)≈ 40–300 m, multi-stage
Motor power≈ 7.5–90 kW, 50/60 Hz
Voltage options380/400/415/440/460 V (OEM possible)
Outlet diameter≈ DN125
MaterialsSS304/316 wet end; optional duplex on request
Protection / InsulationIP68 / Class F
Max sand≈ 0.1% by weight (application dependent)
StandardsGB/T 2816-2014, GB/T 2818-2014; performance per ISO 9906 acceptance grades

Quick test snapshot (factory bench, 25°C, clear water, single test point): Q ≈ 50 m³/h at H ≈ 100 m, input ≈ 22 kW, peak hydraulic efficiency ≈ 73%. Your curve will shift with stage count, frequency, and water quality, obviously.

Where it tends to get used

  • Agricultural irrigation and pivot systems
  • Municipal/estate potable water from deep wells
  • Mining and construction dewatering
  • Geothermal water lift and process water
  • Emergency drought relief—containerized sets with VFDs

Process, materials, and testing

Wet-end bowls and impellers are precision-cast; shafts are balanced; laser or TIG welds on critical joints; stator windings impregnated with epoxy resin. Hydrostatic casing tests are typically run at ≈1.5× rated pressure. Performance acceptance follows ISO 9906 (Grade 2B is common), and motors reference IEC 60034 for temperature rise and efficiency classes. Service life? In clean water with proper NPSH and starts per hour observed, operators report 20,000–30,000 running hours—sand will cut that, so filtration and screens matter.

Why buyers pick it

  • OEM flexibility: odd voltages, long cables, anti-corrosion coatings.
  • Standards paperwork: GB/T and ISO test sheets help with approvals.
  • Efficiency gains when paired with a VFD—less throttle loss, more control.
  • Spare parts support seems decent; many customers say lead times are reasonable.
Vendor comparison (indicative)
Vendor Customization Standards & Docs Lead Time After‑sales
WellPumpACT (125QJB) High (OEM non‑standard) GB/T, ISO 9906 sheets ≈ 2–5 weeks Direct factory
Import Brand X Medium (catalog options) ISO/CE packs ≈ 6–10 weeks Regional partner
Local Reseller Y Low Basic test note Stock dependent Variable

Mini case notes

A Hebei farm co‑op swapped older units for 125QJB Deep Well Submersible Pump sets and, according to their manager, saw fewer nighttime trip alarms and around 10–12% lower energy use after adding VFDs. Another contractor doing mine dewatering told me the sand handling was “better than expected,” though they still rotate screens every month.

125QJB Deep Well Submersible Pump | High Head, Energy Saving

Customization menu (high level)

  • Voltage/frequency sets for 50/60 Hz grids
  • Cable lengths, stainless grades, duplex options
  • Sand‑resistant bearings, wear rings, hard coatings
  • VFD‑ready motors, soft starts, and telemetry ports

Final thought: If your spec leans on GB/T with ISO 9906 acceptance and you need OEM tweaks without a six‑month wait, the 125QJB Deep Well Submersible Pump is worth shortlisting. For pricing and non‑standard builds, reach the factory in Hebei or ping WhatsApp 17855846335.

Authoritative citations

  1. GB/T 2816-2014 Well submersible pump.
  2. GB/T 2818-2014 Well submersible asynchronous motor.
  3. ISO 9906:2012 Rotodynamic pumps—Hydraulic performance acceptance tests.
  4. IEC 60034-1: Rotating electrical machines—Rating and performance.
