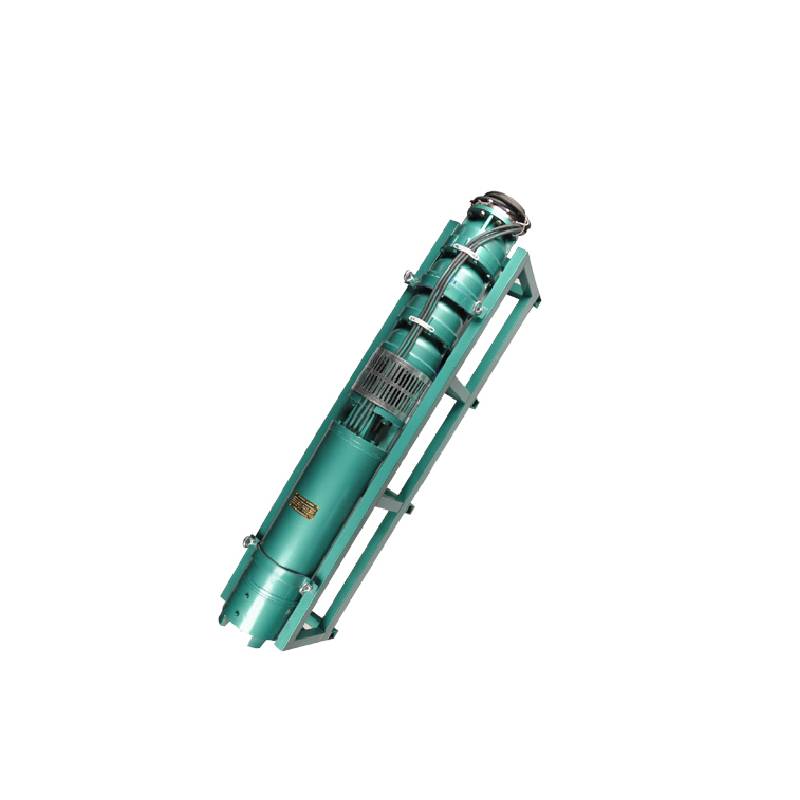

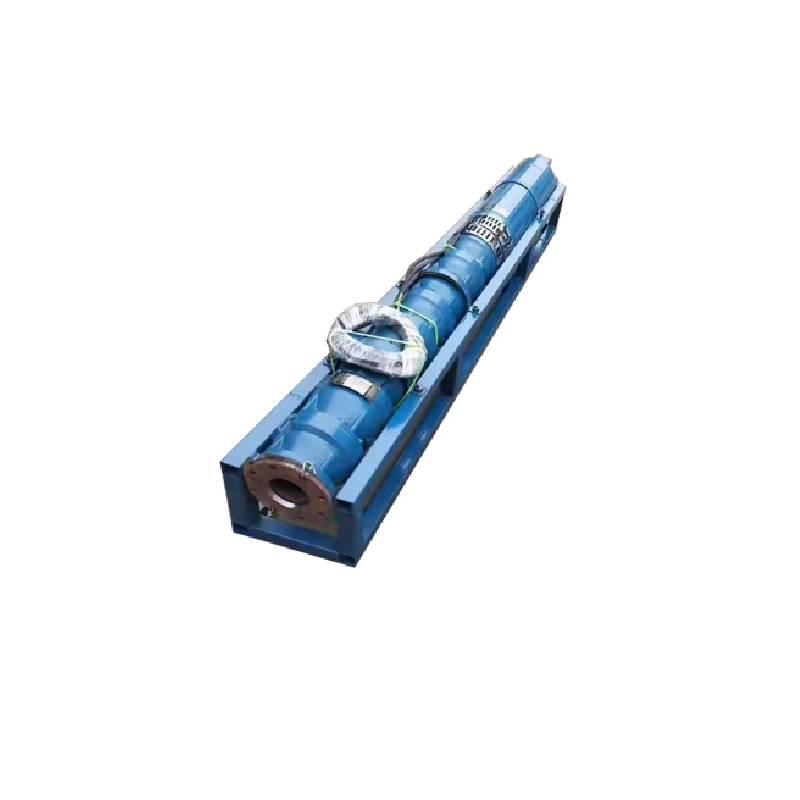

150QJP Peep Daradara Submersible fifa

QJP series special fountain pump is a fountain pump with higher efficiency developed by our factory. The motor core of the pump is made of high quality cold rolled silicon steel, which makes the pump have good magnetic permeability and will not produce heat when starting frequently. The two ends of the motor rotor are equipped with water-lubricated alloy copper sleeves instead of ball bearings, thus avoiding the problem of easy rust of ball bearings and burnout of motor due to lack of oil. 0JP series pump is also equipped with a variety of intelligent functions, such as over-temperature protection, anti-dry burning protection, etc., to ensure the safe operation of the pump. The pump is suitable for fountain decoration in landscape engineering, square, garden and other different occasions, providing users with efficient and reliable pumping solutions.

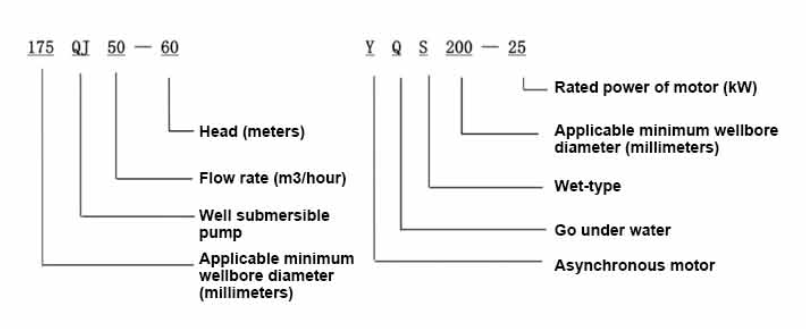

1, ipese agbara: mẹta-alakoso AC 380V (ifarada +/- 5%), 50HZ (ifarada +/- 1%).

2, Didara omi:

(1) iwọn otutu omi ko ga ju 20 °C;

(2) akoonu aimọ ti o lagbara (ipin ipin) ko tobi ju 0.01%;

(3) PH iye (pH) 6.5-8.5;

(4) akoonu sulfide hydrogen ko tobi ju 1.5mg/L;

(5) akoonu ion kiloraidi ko tobi ju 400mg/L.

3, awọn motor ti wa ni pipade tabi omi-kún tutu be, ṣaaju ki o to lilo awọn submersible motor iho gbọdọ wa ni kún fun o mọ omi, lati se eke ni kikun, ati ki o Mu awọn omi abẹrẹ, air Tu boluti, bibẹkọ ti ko gba ọ laaye lati lo.

4, fifa omi inu omi gbọdọ wa ni kikun ninu omi, ijinle omiwẹ ko tobi ju 70m, isalẹ ti fifa omi ti o wa ni isalẹ ti kanga ko kere ju 3m.

5, ṣiṣan omi kanga yẹ ki o ni anfani lati pade iṣelọpọ omi fifa omi ti o wa ni abẹlẹ ati iṣẹ ti nlọ lọwọ, o yẹ ki o wa ni iṣakoso ni 0.7 - 1.2 igba sisan ti a ṣe.

6, kanga yẹ ki o wa ni titọ, fifa omi inu omi ko le ṣee lo tabi da silẹ, lilo inaro nikan.

7, awọn submersible fifa gbọdọ wa ni ibamu pẹlu okun ni ibamu si awọn ibeere, ati awọn ita apọju Idaabobo ẹrọ.

8, fifa naa jẹ idinamọ muna laisi omi ko si ẹrọ idanwo fifuye

1, fifa omi inu omi daradara fun fifa omi mimọ, ṣe idiwọ kanga tuntun, fifa fifa ati omi ẹrẹ,

2, daradara omi fifa foliteji ite 380 / 50HZ, awọn lilo ti miiran foliteji onipò ti submersible Motors nilo lati wa ni adani. Kebulu ipamo gbọdọ lo okun ti ko ni omi, gbọdọ wa ni ipese pẹlu ohun elo ibẹrẹ, gẹgẹbi apoti pinpin, ibẹrẹ ko ṣetan ko yẹ ki o ti lo iṣẹ aabo okeerẹ mọto, gẹgẹbi aabo apọju kukuru kukuru, aabo alakoso, aabo labẹ foliteji, aabo ilẹ, aabo idling , ni ọran ti awọn ipo ajeji, ẹrọ aabo yẹ ki o jẹ irin-ajo igbese akoko.

3, fifi sori ẹrọ ati lilo fifa soke gbọdọ wa ni ipilẹ ti o gbẹkẹle, ṣe idiwọ titari ati fifa yipada nigbati awọn ọwọ ati ẹsẹ ba tutu, gbọdọ ge ipese agbara ṣaaju fifi sori ẹrọ ati itọju fifa soke, aaye lilo fifa lati ṣeto soke " lati ṣe idiwọ mọnamọna ina” awọn ami ti o han gbangba:

4, isalẹ awọn kanga tabi ṣaaju fifi sori, awọn motor iho gbọdọ wa ni kún pẹlu distilled omi tabi ti kii-corrosive mọ tutu farabale omi, Mu awọn / omi boluti, awọn fifa lori ilẹ igbeyewo run, gbọdọ jẹ si awọn fifa iyẹwu omi lubrication roba. bearings, lesekese bẹrẹ ko siwaju sii ju iseju kan, wo boya awọn idari oko jẹ kanna bi awọn idari oko itọnisọna. Nigbati fifa soke ba wa ni pipe, san ifojusi si ailewu, ṣe idiwọ ipalara yiyi pada.

5, muna ni ibamu si awọn ipese ti fifa fifa soke, iwọn lilo ti sisan, lati ṣe idiwọ sisan kekere tabi agbara fifa soke, gbigbe gbigbe ati awọn ẹya miiran ti yiya, apọju motor ti sun 6, lẹhin fifa soke daradara, wiwọn ti motor si ilẹ idabobo resistance ko yẹ ki o wa ni kere ju 100M, lẹhin ti awọn ibere lati mo daju awọn foliteji ati lọwọlọwọ, ṣayẹwo awọn motor yikaka idabobo, boya ni ila pẹlu awọn ibeere; fifa soke ipamọ ipo otutu ti o ba ti kere ju didi ojuami, yẹ ki o wa gbẹ awọn motor iho omi, se awọn motor iho omi yinyin bibajẹ ṣẹlẹ nipasẹ kekere otutu.

The pump part is mainly composed of pump shaft, impeller, flow guide housing, rubber bearing, check valve body (optional) and other parts. The motor part is mainly composed of base, pressure regulating diaphragm, thrust bearing, thrust plate, lower guide bearing seat, stator, rotor, upper guide bearing seat, sand discharging ring, water inlet section, lead cable and other parts. The main features of the product include: the motor is a water-filled wet submersible three-phase asynchronous motor, the motor cavity is filled with clear water for cooling the motor and lubricating the bearing, the pressure regulating diaphragm at the bottom of the motor is used to adjust the pressure difference caused by the heating of the motor. In order to prevent the sand in the well water from entering the motor, the upper end of the motor shaft extension is installed with two oil seals, and the sand discharging ring is installed to form a sand prevention structure. In order to avoid the pump shaft jumping when starting, the pump shaft is connected with the motor shaft through a coupling, and the thrust bearing is installed at the bottom of the motor. The lubrication of the motor and the pump bearing is water lubrication, and the stator winding of the motor uses high quality submersible motor wire with high insulation performance. The pump is designed by computer CAD, with simple structure and superior technical performance.

(1) Igbaradi ṣaaju fifi sori:
1. Ṣayẹwo boya fifa omi inu omi ba pade awọn ipo lilo ati iwọn ti a pato ninu itọnisọna.
2. Lilo obiect ti o wuwo pẹlu iwọn ila opin ti o dọgba si iwọn ila opin ti ita ti o pọju ti fifa fifa, wiwọn boya inneldiameter ti wellbore le ni ibamu si fifa omi ti o wa ni isalẹ, ki o si wiwọn boya ijinle kanga ni ibamu pẹlu awọn ibeere fifi sori ẹrọ.
3. Ṣayẹwo boya ibi kanga jẹ mimọ ati boya omi kanga jẹ turbid. Maṣe lo fifa ina submersible lati fọ ẹrẹ fifa welor ati omi iyanrin lati yago fun ibajẹ ti tọjọ si fifa ina submersible.
4. Ṣayẹwo boya awọn ipo ti awọn welhead fifi sori dimole jẹ dara ati boya o le withstand awọn qualty ti gbogbo kuro
5. Ṣayẹwo boya awọn paati fifa submersible ti pari ati fi sori ẹrọ daradara ni ibamu si apẹrẹ apejọ ti o wa ninu iwe afọwọkọ Yọ iboju àlẹmọ naa ki o si yi asopọ pọ lati rii boya o n yi ni irọrun
6. Unscrew omi dabaru ati ki o fillthe motor iho pẹlu mọ, ti kii ipata omi (akọsilẹ. jẹ daju lati Fil o soke), ki o si Mu awọn waterscrew. Lẹhin awọn wakati 12 ti abẹrẹ omi, idabobo idabobo ti motor ko yẹ ki o kere ju 150M Q nigbati wọn wọn pẹlu tabili gbigbọn 500V.
7. Isopo okun, ge apo rọba 120mm kan lati opin kan ti okun ti njade ati okun ti o baamu pẹlu ọbẹ eletiriki lẹhinna ta gigun ti awọn okun onirin mẹta ni apẹrẹ ti o ni ipele, yọ mojuto 20mm Ejò kuro, yọ oxide. Layer lori theside ti awọn Ejò waya pẹlu kan ọbẹ tabi iyanrin asọ, ki o si fi awọn meji ti sopọ waya pari ni palirs.After tying awọn Layer ni wiwọ pẹlu itanran Ejò waya, solder o daradara ati ki o ìdúróṣinṣin, ati iyanrin ti eyikeyi. burrs lori dada. Lẹhinna, fun awọn isẹpo mẹta, lo teepu idabobo polyvester lati fi ipari si wọn ni ọna tolera ologbele fun awọn lafa mẹta. Pa awọn opin meji ti Layer wiwu ni wiwọ pẹlu okun nyion, ati lẹhinna lo ọna tolera ologbele lati fi ipari si teepu fun awọn fẹlẹfẹlẹ mẹta. Fi ipari si outellayer pẹlu teepu idabobo giga-titẹ fun awọn ipele mẹta. Nikẹhin, ṣe agbo awọn okun mẹta papo ki o si fi ipari si wọn leralera fun awọn marunlayers pẹlu teepu titẹ-giga. Layer kọọkan gbọdọ wa ni wiwọ ni wiwọ, ati awọn isẹpo interlayer gbọdọ jẹ ṣinṣin ati fimm lati yago fun omi lati wọ inu ati ba idabobo naa jẹ, Lẹhin ti murasilẹ, fi omi sinu omi ni iwọn otutu ti 20 'c fun wakati 12, ki o si wiwọn resistance idabobo pẹlu tabili gbigbọn. , eyiti ko yẹ ki o kere ju 100M Ω

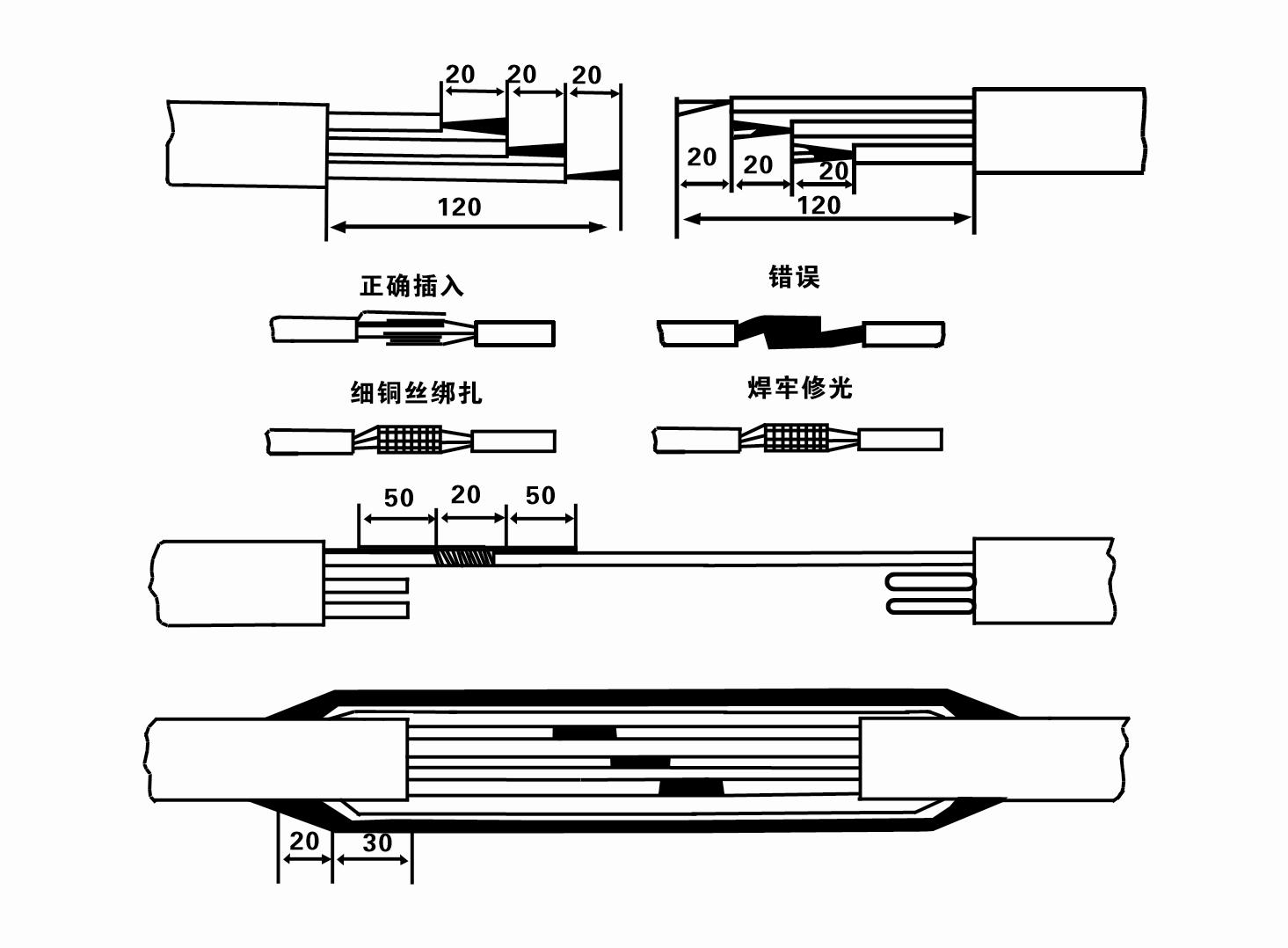

Aworan ilana onirin okun ti a so mọ jẹ bi atẹle:

8. Lo multimeter kan lati ṣayẹwo boya awọn onirin mẹta-alakoso ti wa ni ti sopọ ati boya awọn DC resistance jẹ to iwontunwonsi.
9. Ṣayẹwo boya awọn Circuit ati transformer agbara ti wa ni apọju, ati ki o si so apọju Idaabobo yipada tabi ti o bere ẹrọ. Wo Tabili 2 fun awọn awoṣe kan pato, ati lẹhinna Tú garawa omi kan sinu fifa omi lati inu iṣan omi lati lubricate awọn bearings roba ninu fifa soke, ati lẹhinna gbe fifa ina mọnamọna submersible ni titọ ati iduroṣinṣin.Bẹrẹ (ko si ju iṣẹju kan lọ) ati ki o ṣayẹwo boya itọsọna idari ni ibamu pẹlu ami idari. Ti kii ba ṣe bẹ, paarọ eyikeyi awọn asopọ meji ti okun oni-mẹta. Lẹhinna fi àlẹmọ sori ẹrọ ki o mura lati lọ si isalẹ kanga naa. Ti a ba lo ni awọn iṣẹlẹ pataki (gẹgẹbi awọn koto, awọn koto, awọn odo, awọn adagun omi, awọn adagun omi, ati bẹbẹ lọ), fifa ina mọnamọna gbọdọ wa ni ilẹ ni igbẹkẹle.

(2) Awọn ohun elo fifi sori ẹrọ ati awọn irinṣẹ:
1. Ọkan bata ti awọn ẹwọn gbigbe fun diẹ ẹ sii ju awọn toonu meji lọ.
2. A mẹta pẹlu kan inaro iga ti ko kere ju mẹrin mita.
3. Awọn okun adiye meji (awọn okun waya) ti o le jẹ iwuwo diẹ ẹ sii ju ọkan lọ (le jẹ iwuwo ti pipe pipe ti awọn fifa omi).
4. Fi sori ẹrọ meji orisii clamps (splints).
5. Wrenches, òòlù, screwdrivers, itanna irinṣẹ ati ohun elo, ati be be lo.

(3) Fifi sori ẹrọ fifa ẹrọ itanna:
1. Aworan fifi sori ẹrọ ti fifa ina mọnamọna submersible ti wa ni afihan ni Nọmba 2. Awọn iwọn fifi sori ẹrọ pato ni a fihan ni Table 3 "Akojọ ti Awọn Iwọn fifi sori ẹrọ ti Imudanu Imọlẹ Imọlẹ".

2. Awọn ifasoke ina mọnamọna ti o wa ni isalẹ pẹlu ori ti o kere ju 30 mita ni a le gbe soke taara sinu kanga nipa lilo awọn okun ati awọn okun waya tabi awọn okun hemp miiran ti o le ni kikun iwuwo ti gbogbo ẹrọ, awọn ọpa omi, ati omi ninu awọn paipu.

3. Awọn ifasoke pẹlu ori ti o ju 30 mita lo awọn paipu irin, ati ilana fifi sori ẹrọ jẹ bi atẹle:
① Lo dimole kan lati di opin oke ti apakan fifa omi (moto ati fifa omi ti wa ni asopọ ni akoko yii), gbe e pẹlu ẹwọn ikele, ki o si sorara di e sinu kanga naa titi ti o fi fi dimole si ori kanga ki o si yọkuro ikele pq.
② Lo awọn clamps meji miiran lati di paipu kan, gbe e pẹlu ẹwọn ikele 15 cm kuro ni flange, ki o si lọ silẹ laiyara. Laarin pipe flange ati fifa flangeFi awọn roba pad ni ibi ati Mu paipu ati fifa boṣeyẹ pẹlu boluti, eso ati orisun omi washers.
③ Gbe fifa omi ti o wa ni isalẹ diẹ diẹ, yọ idimu ti o wa ni opin oke ti fifa omi, di okun naa ṣinṣin si paipu omi pẹlu teepu ike kan, ki o si so o lọra titi di igba ti a fi dimu si ibi kanga.
④ Lo ọna kanna lati di gbogbo awọn paipu omi sinu kanga.
⑤ Lẹhin ti okun-jade ti a ti sopọ si iyipada iṣakoso, o ti sopọ si ipese agbara mẹta-alakoso.

(4) Awọn nkan lati ṣe akiyesi lakoko fifi sori ẹrọ:
1. Ti o ba ti a jamming lasan ti wa ni ri nigba ti fifa ilana, tan tabi fa omi paipu lati bori awọn jamming ojuami. Ti ọpọlọpọ awọn igbese ko ba ṣiṣẹ, jọwọ maṣe fi agbara mu fifa soke lati yago fun ibajẹ si fifa ina submersible ati kanga.
2. Lakoko fifi sori ẹrọ, paadi rọba yẹ ki o gbe ni flange ti paipu kọọkan ati ki o ni wiwọ paapaa.
3. Nigbati fifa omi ba ti wa ni isalẹ sinu kanga, o yẹ ki o gbe si arin paipu kanga naa lati ṣe idiwọ fifa soke lati ṣiṣẹ lodi si odi kanga fun igba pipẹ, ti o mu ki fifa soke lati gbọn ati pe ọkọ ayọkẹlẹ lati gba ati sisun. .
4. Ṣe ipinnu ijinle ti fifa omi si isalẹ ti kanga gẹgẹbi iyanrin ti nṣan ati awọn ipo silt ti kanga. Ma ṣe sin fifa soke sinu ẹrẹ. Ijinna lati fifa omi si isalẹ ti kanga ni gbogbogbo ko kere ju awọn mita 3 (wo Nọmba 2).
5. Ijinle titẹsi omi ti fifa omi yẹ ki o jẹ ko kere ju awọn mita 1-1.5 lati ipele omi ti o ni agbara si oju omi ti nwọle (wo Nọmba 2). Bibẹẹkọ, awọn bearings fifa omi le ni irọrun bajẹ.
6. Gbigbe ti fifa omi ko le jẹ kekere ju. Bibẹẹkọ, àtọwọdá ẹnu-ọna nilo lati fi sori ẹrọ lori opo gigun ti omi kanga lati ṣakoso ṣiṣan fifa ni aaye ṣiṣan ti o ni iwọn lati ṣe idiwọ mọto lati ni apọju ati sisun nitori awọn iwọn sisan nla.
7. Nigbati fifa omi ba n ṣiṣẹ, ṣiṣan omi yẹ ki o wa ni ilọsiwaju ati paapaa, lọwọlọwọ yẹ ki o wa ni iduroṣinṣin (labẹ awọn ipo iṣẹ ti a ṣe ayẹwo, ni gbogbo igba ko ju 10% ti iṣiro lọwọlọwọ), ati pe ko yẹ ki o jẹ gbigbọn tabi ariwo. Ti aiṣedeede eyikeyi ba wa, ẹrọ naa yẹ ki o da duro lati wa idi ti o fa ati imukuro rẹ.
8. Nigbati fifi sori, san ifojusi si awọn eto ti awọn motor grounding waya (wo Figure 2). Nigbati paipu omi jẹ paipu irin, darí rẹ lati dimole kanga; nigbati paipu omi jẹ paipu ike kan, darí rẹ lati aami ilẹ ti fifa ina.

When the submersible pump is installed, recheck the insulation resistance and three-phase connectivity of the switch, and check whether there is any error in the connection between the instrument and the starting equipment. If there is no problem, you can start the test machine. After starting, observe whether the indication reading of each instrument is correct. If the rated voltage and current specified on the nameplate are exceeded, observe whether the pump has any noise or vibration. If everything is normal, you can put into operation. After the first start of the pump for four hours, it should be closed and the thermal insulation resistance of the motor should be quickly tested. Its value should not be less than 0.5 megaohm. After stopping the pump, it should be restarted after a five-minute interval to prevent the water column in the pipeline from completely reversing, resulting in the motor burning due to excessive current. After the pump is put into normal operation, in order to prolong its service life, it is necessary to check regularly whether the supply voltage, working current and insulation resistance are normal. If the following conditions are found, the machine should be shut down immediately to eliminate the fault:

1.the current exceeds 20% under the rated working conditions.

2.the dynamic water level drops to the inlet section, resulting in intermittent drainage.

3.the submersible pump vibrates violently or emits huge noise.

4.the supply voltage is lower than 340 volts.

5.a fuse is blown out.

6.the water pipe is damaged.

7.the thermal insulation resistance of the motor to the ground is less than 0.5 megaohm.

When disassembling the unit:

1.lock the cable, take off the pipeline part, and remove the line protection plate.

2.unscrew the drain bolt, empty all the water in the motor chamber.

3.remove the filter, loosen the screw on the coupling fixed motor shaft.

4.unscrew the bolt connecting the water inlet section and the motor, and separate the pump and the motor (pay attention to the leveling unit when separating to prevent the bending of the pump shaft).

5.the disassembly sequence of the pump is: (see Figure 1) water inlet section, impeller, guide housing, rotor, impeller. Check the valve body. When removing the impeller, use special tools to loosen the conical sleeve fixed on the impeller. In the process of disassembly and assembly, avoid bending the pump shaft and damaging various parts.

6.the disassembly process of the motor is: (see Figure 1) put the motor on the platform, remove the nut, base, shaft head lock nut, thrust plate, key, lower guide rail, support seat, and tie rod bolt from the bottom of the motor in order, and then take out the rotor (be careful not to damage the wiring harness), and finally remove the connecting part and the upper guide rail bearing seat. When assembling the unit: before assembly, rust and dirt on each part should be cleaned and sealant coated on each mating surface and fastener, then assembled in reverse order of disassembly (motor shaft movement after assembly is about 1 mm), after assembly, coupling should be flexible, then put on the filter for testing. Each submersible pump running for one year, or if the running time is less than one year but has been immersed for two years, it must be disassembled and inspected according to Article 5 to replace worn parts.

 1, gbe omi jade ninu iho moto (paapaa ni igba otutu lati ṣe idiwọ mọto lati didi), ki o di okun naa daradara.

 2, tọju sinu yara inu ile laisi awọn nkan ti o bajẹ ati awọn gaasi, pẹlu iwọn otutu ti o wa labẹ 40 °C.

 3, gun-igba lilo yẹ ki o san ifojusi si ipata idena ti submersible bẹtiroli.
